Ingot casting machinePosition: Home > Products > Magnesium alloy furnace > Ingot casting machine

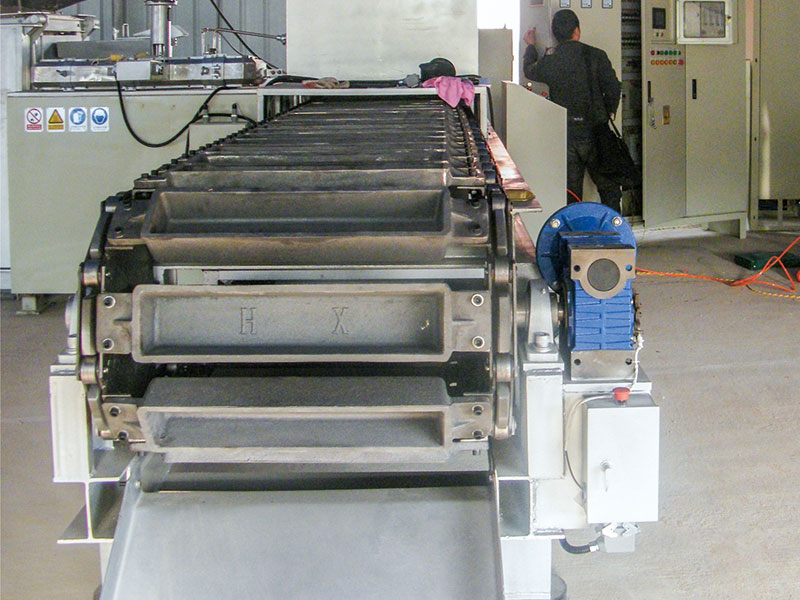

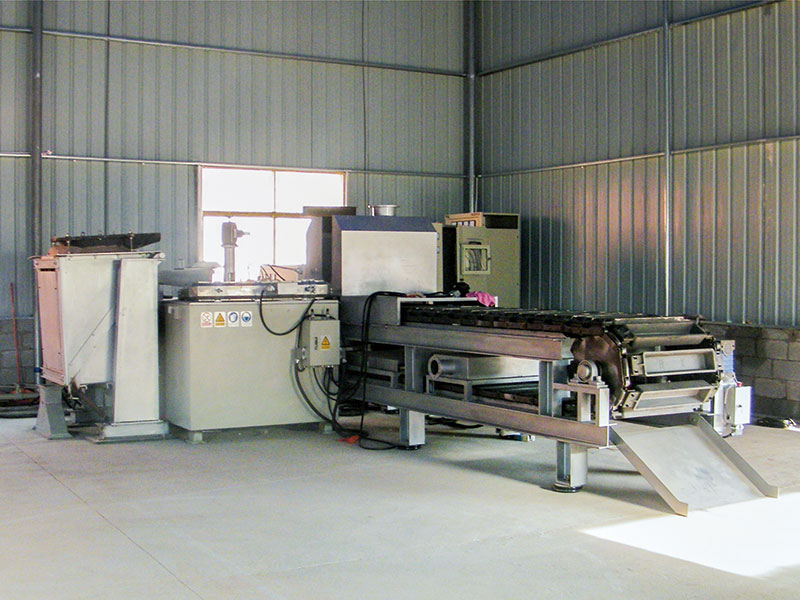

Magnesium alloy ingot production line
Technical characteristics of the ingot machine
- Imported inverter control and Taiwan imported high-quality worm gear box drive ingot transfer system, reliable and stable operation and can realize stepless speed change of drive system.
- The machine body adopts integrated high-strength design, which has the characteristics of strong rigidity, stable operation and no ripple of liquid magnesium alloy surface, which makes the surface of the ingot smooth and flat.
- Ingot mold made of RTSi5 heat-resistant steel, high temperature resistance and long service life.
- The ingot transfer chain is made of high-temperature resistant structural steel and is resistant to wear and corrosion.
- Equipped with dual gas path gas protection device to effectively prevent oxidation of magnesium-bismuth alloy in the ingot mold.
- The ingot mold adopts electric heating preheating device to ensure that the surface of the ingot mold is preheated evenly and no inclusions and gases are generated during ingot casting.
- Automatic control of liquid level height, automatic control of control and quantitative pump transmission in the ingot mold directly below the pouring gate to ensure consistent ingot weight during the ingot casting process, safe and reliable.
Details
Main technical parameters of ingot casting machine:
NO | Specifications/Size: | Unit | Parameter | Remark |
1 | L*W*H | mm | About 11000x1100x1150 | |
2 | Reduction motor power | Kw | 3.0 | |
3 | Running speed | Mold/min | 2-8 | Frequency conversion regulation |
4 | Mold count | pcs | 100 | |
5 | Protective gas SF6 ratio | ％ | 0.2-0.3 | |
6 | Nitrogen pressure | Kg/cm2 | 4 | |
7 | Argon pressure | Kg/cm2 | 4 | |
8 | Preheating way | Electric heating | Power 20KW | |
9 | Annual capacity of magnesium ingot | T/year | 6500 | Actual capacity depends on the melting and holding furnace |
10 | Standard weight of magnesium ingots | Kg | 4-8 | As picture |
